Vacuum pump oil mist separator / silencer / filter

●This equipment is applicable for oil mist separation of all series oil-sealed vacuum pumps with an exhaust volume of 1-300L/S;
● It can be used as an exhaust muffler for any model pre-stage vacuum pump;
● It can be used as a dust filter for the exhaust of any model pre-stage vacuum pump, with a filtration accuracy of 3um;
……

Interview

Interview

选择规格数量

Product Details
Specifications
Online payment

Product Applications

The vacuum pump oil mist separation/damping/filtering device is a vacuum environmental protection and energy-saving equipment, used for oil mist separation in the exhaust of the pre-stage vacuum pump, dust filtration and noise reduction, thereby extending the pump's service life, improving the working environment and ensuring personnel health.
1. This equipment is applicable for oil mist separation of all series oil-sealed vacuum pumps with an exhaust volume of 1-300L/S;
2. It can be used as an exhaust muffler for any model pre-stage vacuum pump;
3. It can be used as a dust filter for the exhaust of any model pre-stage vacuum pump, with a filtration accuracy of 3um;
4. It can be used as a muffler and filter on vacuum equipment as a pressure relief valve;
5. The filter element has a filtration accuracy of 3um, an inner metal mesh, and a pressure regulating valve, which automatically adjusts the opening ratio according to the exhaust volume;
6. Both the inlet and outlet adopt standard interfaces (GBT4982 and GBT6070), and adapter heads can be customized according to requirements;
7. Suitable for laboratories, clean rooms, semiconductor processes, high-purity raw material preparation, fine chemicals, vacuum smelting and environments with requirements for direct discharge;
8. According to customer requirements, a composite capture device with activated carbon (which can extract some toxic and harmful gases) can be configured. The gas treatment equipment can be designed, manufactured and installed according to customer requirements.

The problem solved
1. Solve the problems of 'start-up', 'blowing gas' during operation and 'smoke emission' in oil-sealed vacuum pumps, and improve the human-machine environment;
2. Prevent the reduction of pump oil in oil-sealed vacuum pumps from causing the pump to lose sealing effect and resulting in a decrease in vacuum degree;
3. Prevent the reduction of pump oil in oil-sealed vacuum pumps from causing uneven lubrication and resulting in the reduction of pump lifespan;
4. Reduce the frequency of adding vacuum pump oil to the pump and lower the operating cost of the equipment;
5. Effectively reduce the exhaust noise of the vacuum pump and significantly improve the human-machine environment, ensuring the health of operators;
6. Use as a pressure relief filter for vacuum equipment and high-purity gas sampling devices to reduce the probability of noise and dust entering;
7. Solve the problem of environmental pollution caused by direct discharge of vacuum pumps to the work environment and the damage to personnel health;
8. If there is an external接管 route for the exhaust port， reduce air pollution and the probability of environmental pollution around， be more environmentally friendly and healthier， and as an environmental protection facility to reduce environmental protection supervision penalties.

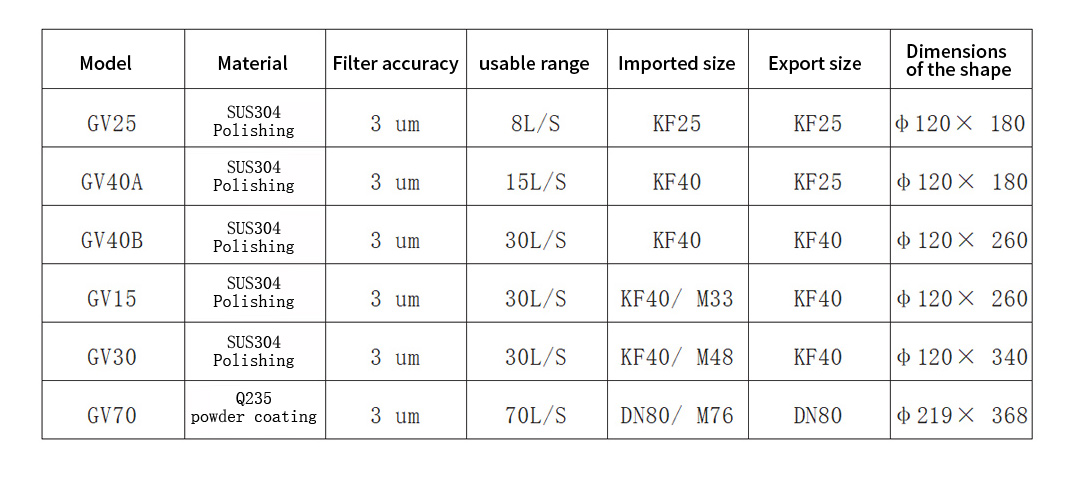

Technical Parameters

Note: KF interface (GB4982), DN interface (GB6070). Customized adapters are available. Equipment modifications will not be notified separately.
